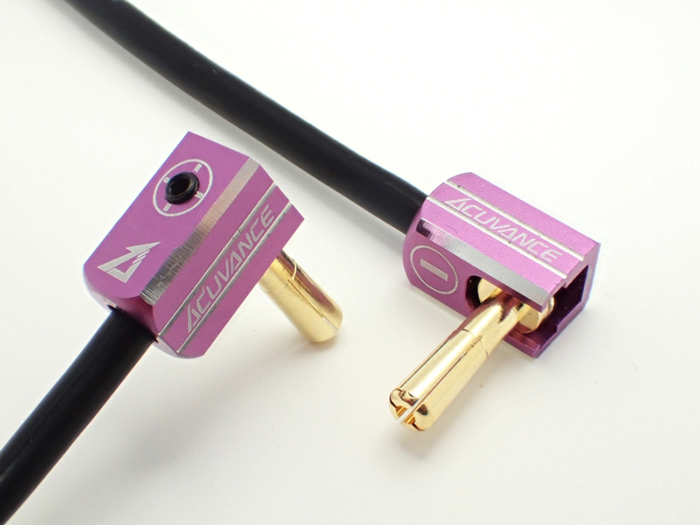

ACUVANCE OP-15132 High-radiation connector Φ4mm set ( Purple)
Full specifications

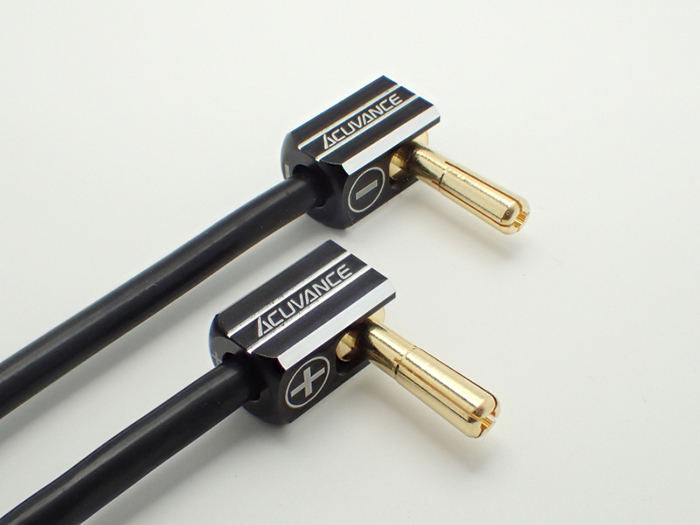

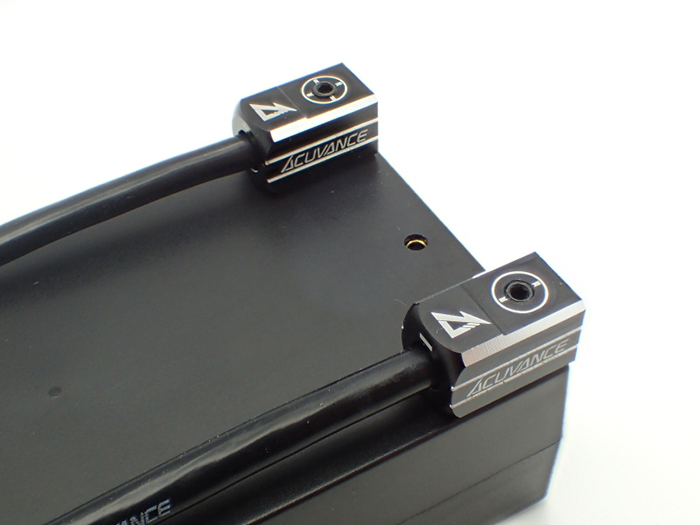

- This set includes the aluminum grip [Radiation Grip] for ACUVANCE male connectors (Φ4mm/Φ5mm) and the high-capacity power male connector (Φ4mm).

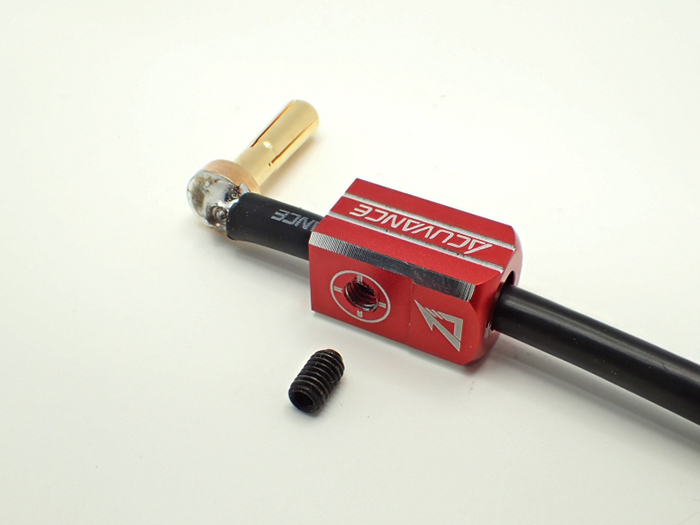

Precision design based on the connector size and crimping fixation with set screws improves adhesion between the grip and connector, and maximizes the aluminum volume and contact area with the connector, allowing the battery to efficiently dissipate heat from the grip and reducing power loss during high-load driving.
In addition, four different colors are available, allowing you to style your power source to your liking.
- *When the connector deteriorates or wears out due to use, please use the separately sold connector kit for radiation grips (Φ4mm, Φ5mm/both with set screws) (see table below). You can
also use the conventional power transmission connectors ( OP-87342, OP-87344 ). (In that case, please use the set screws included in the [High-Radiation Connector Set].)
*Please be careful when handling the battery and radiation grips as they may become hot immediately after driving.
- [IMPORTANT] The aluminum machined parts of the Radiation Grip and the set screw are non-insulated (= they conduct electricity). To prevent electric shock, never touch both the positive and negative grips at the same time while the battery is plugged in. Also, be careful of short circuits caused by metal fragments, etc.
[High-radiation connector set]
[Contents]
Radiation grip (1 each of plus and minus) / Φ4mm male connector x 2 / Set screw x 2 / Shrink tube (red) for identifying the plus side
