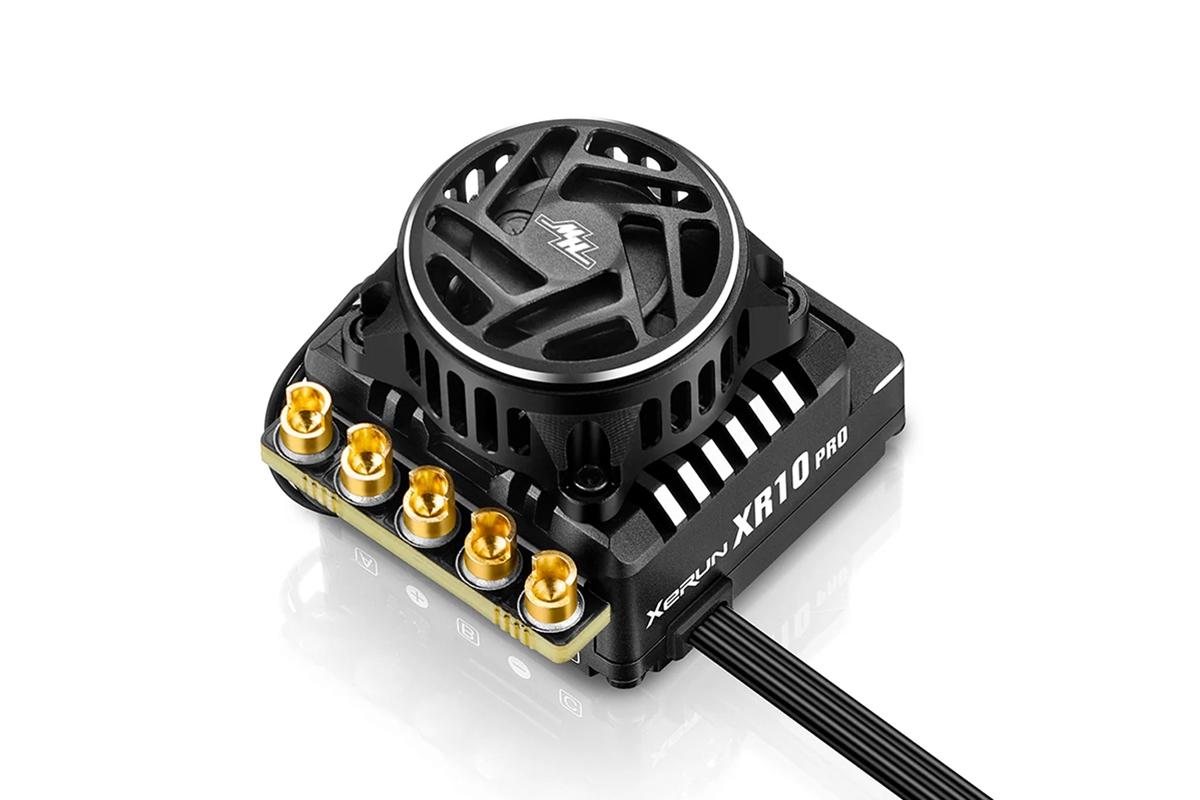

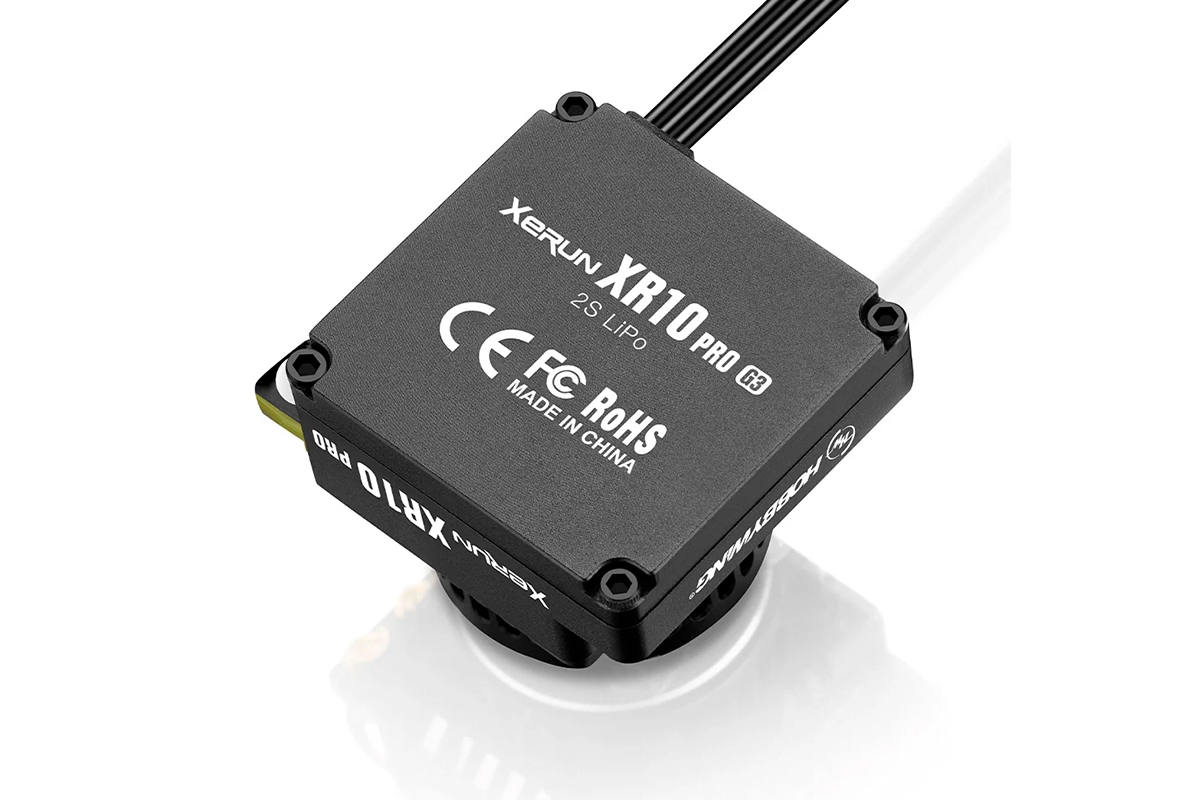

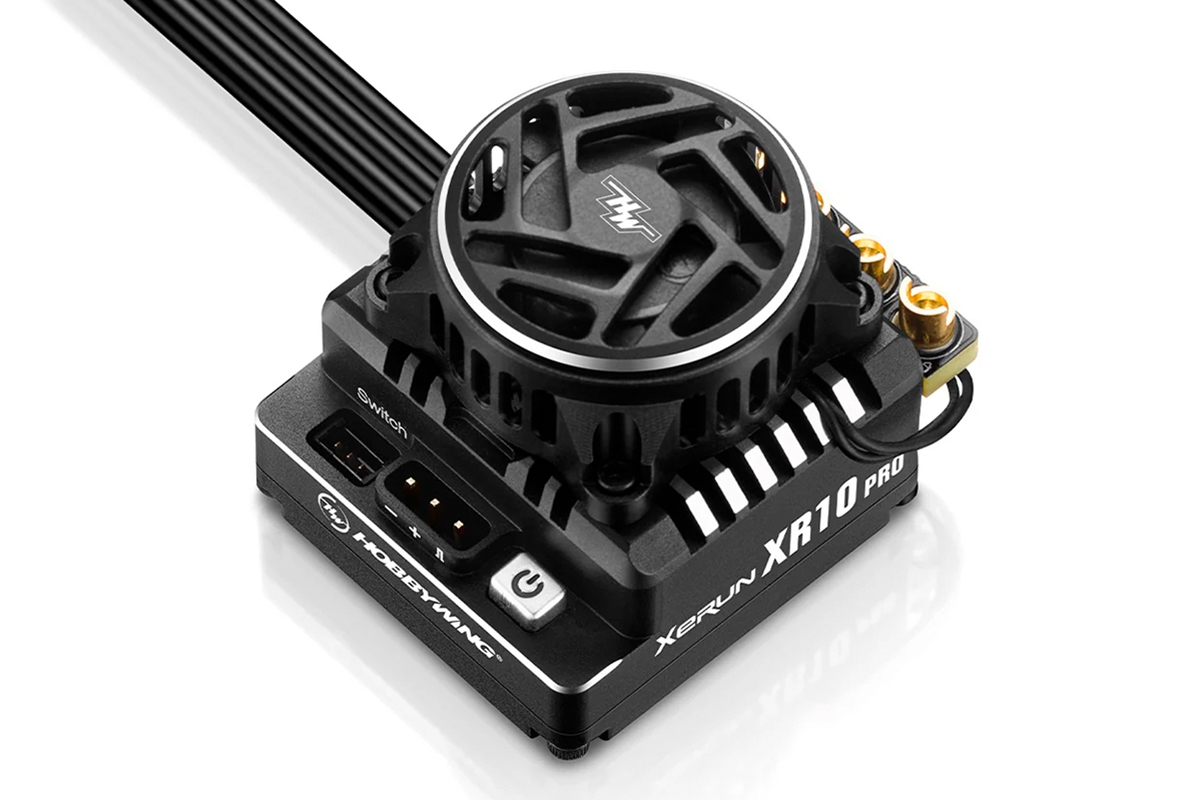

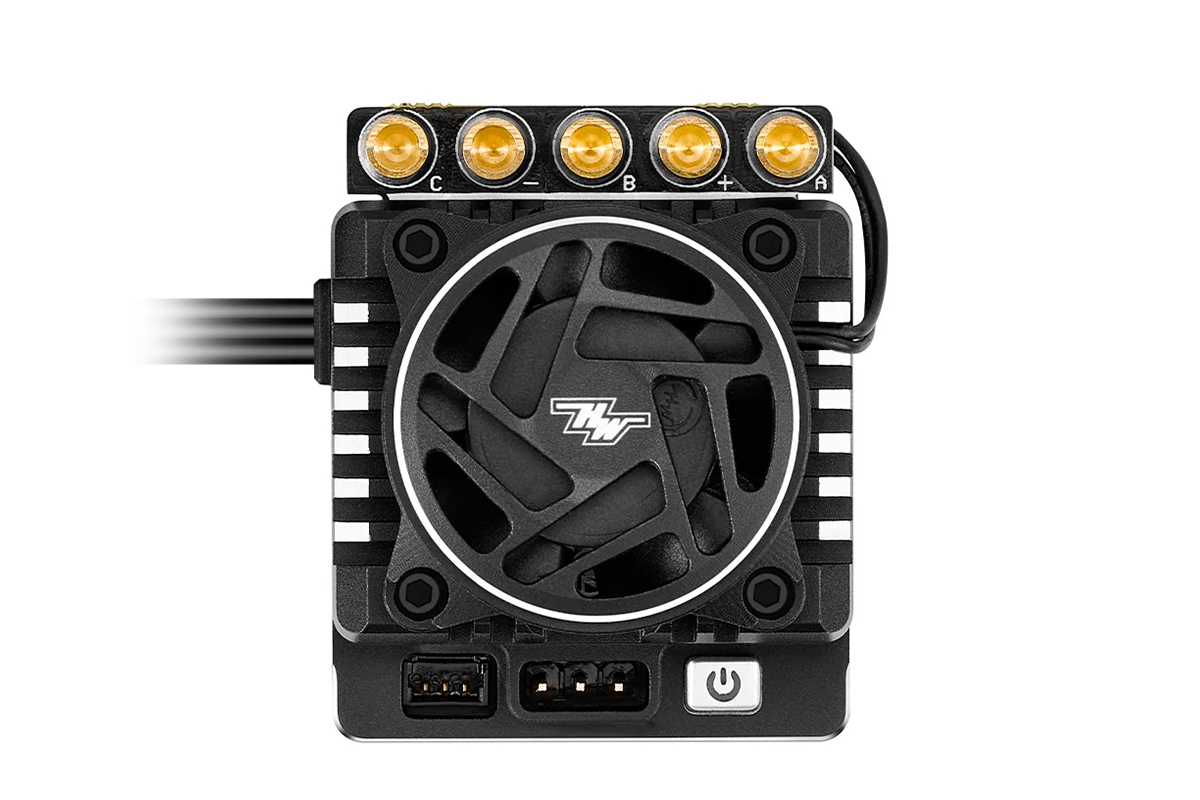

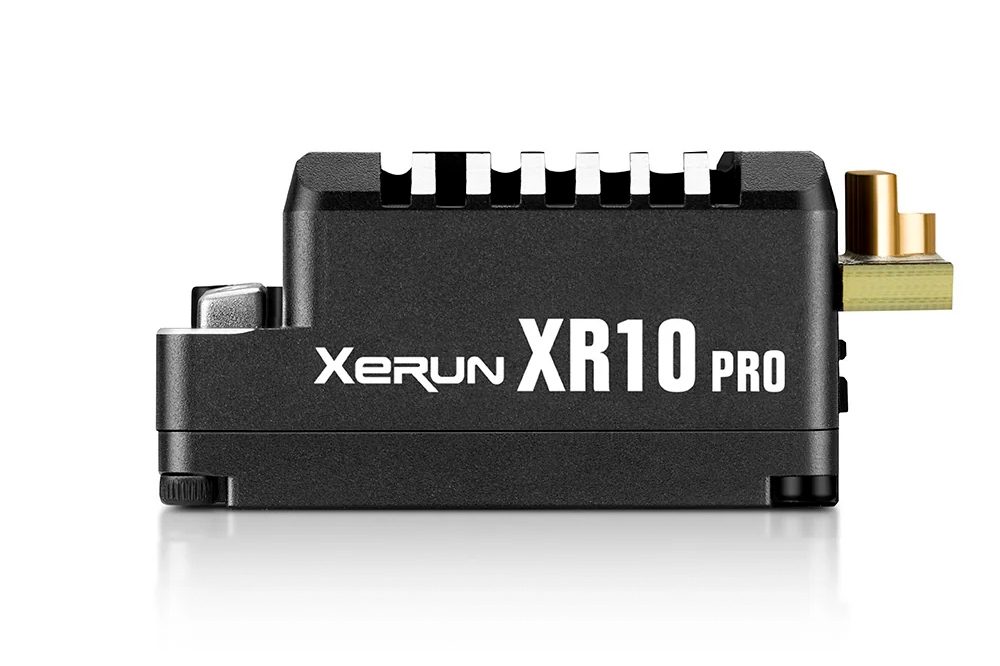

Hobbywing XeRun XR10 Pro G3 Sensored Brushless ESC (Black)

Full specifications

Electronic brushless controller of the XeRun 160A series for sensored and sensorless motors with max. peak current up to 1200 A, built-in SBEC circuit 5-7.4V/6A and programmable via LCD programming box PRO or OTA Bluetooth programmer. Optimized for modified touring cars, drifting, rally and F1 cars in 1/10 scale, 1/10 buggies. For 3650 (540) motors from 4.5 turns, 2S LiPo power supply, smart fan, memory module for data recording.
The XERUN XR10 Pro G3 160A controller offers everything you need to fully exploit the potential of your top racing touring, drifting, rally or F1 RC 1:10 car or 1:10 off-road buggy with brushless motor. It allows the use of both sensored and sensorless brushless motors and offers 3 selectable program profiles - each with a wide range of programmable parameters for perfect adaptation of the motor, chassis and track. It is suitable for competitions where changing the timing on the fly is allowed as well as for zero-timing (boost) races. So, if you are serious about driving your supercharged "tenth" brushless motor, the XERUN XR10 Pro G3 ESC from Hobbywing is the right one for you!

Features

Specially developed for RC cars: 1:10 road (including drift, rally and Formula 1) and off-road buggies, optimized for modified car racing with the ability to change the timing
For 3650/540 size brushless motors with and without sensors with 2S LiPo power supply: motors 4.5 turns and more for touring cars, 5.5 turns and more for buggies
Compact dimensions, low weight, intelligent fan
Preset firmware (can be changed at will) for racing with zero and variable timing with 3 profiles (1/10 stock with zero timing, 1/10 On-Road, 1/10 Off-road) with 44 programmable functions including Boost and Turbo timing (up to 64°) brutally increasing performance
Powerful switched BEC stabilizer up to 6 A with adjustable voltage 5.0-7.4 V
Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.), protection against reverse polarity of the supply voltage
Programmable with the help of the multifunctional LCD programming box PRO (separately, with PC program or mobile application) or OTA Bluetooth module (with mobile application)
Updateable firmware with the help of the multifunctional LCD programming box PRO or OTA Bluetooth (sold separately)
Operating data monitoring possible with the help of the multifunctional LCD programming box PRO or OTA Bluetooth module and mobile application, built-in memory module for data recording (up to 19 sets of records every 20 minutes) allowing viewing of recorded values ​​after driving in the mobile application with the help of the OTA Bluetooth module

Programmable parameters
General: Setting mode (offers a full menu with all 44 functions or a reduced basic menu with 24 most necessary functions), Driving mode, Max. reverse power, Voltage protection, ESC thermal protection, Motor thermal protection, BEC voltage, Smart fan, Auto power off (including the ability to turn off the ESC with the transmitter), Sensor mode, Motor rotation direction, A/C phase reversal
Throttle control: Throttle response control, Throttle curve, Neutral range, Throttle start value, Range, Driving switching frequency, Softening value, Softening range, Freewheel, RPM drop rate
Brake control: Resistance brake intensity, Resistance brake aggressiveness, Resistance brake switching frequency, Max. braking effect, Brake control rate, Brake control mode (Linear/Traditional/Disc), ABS intensity, Brake curve, Brake switching frequency
Timing: Boost timing, Boost timing activation, Boost initial speed, Boost final speed, Boost initial throttle, Boost final throttle, Turbo timing, Turbo delay, Turbo addition rate, Turbo subtraction rate
Configuration: Number of motor poles, Gear ratio, Wheel diameter
Controller set includes: XERUN XR10 Pro G3 controller with cables, user manual.

Continuous current   [A]   160
Max. peak current    [A]   1200
LiXX cells                          2
Length [mm]                    35
Width [mm]                    33.6
Height [mm]                   30.3
Weight (with cables) [g]    93
Sensor input                    Yes
Programmable                 Yes
BEC voltage [V]              5 - 7.4
BEC current [A]                6
Water resistance              No
