TAO II Please read it before use
This product is an effecter for exclusive use of TACHYON AIRIA.
Before use, you have to update firmware of TACHYON AIRIA to a TAO II -adaptive version.
Please update in referring to update software.
* When you update it, PC and update device kit is necessary. (The correspondence OS)
* Please specify with "Request to TAOII-Update" by all means. (Please pay shipping cost by yourself.)
* TACHYON AIRIA where firmware for exclusive use of TAOII was installed cannot perform setting changes in 1st Gen TAO.
Please change a setting mode of TACHYON AIRIA to a program card mode when using TAOII. (TACHYON AIRIA instruction manual P.10)
Regardless of wired communication or wireless communication, because the use with the ESC mode is not possible, please be careful.
Not only at the time of a setting change in TAOII, please always use it as a program card mode during a run.
TAO II is a totally new development type effector that unifies the whole vehicle.
Generally, a program card for E.S.C. is external equipment to more easily operate various set points programmed beforehand by the E.S.C. In contrast, many users give a high evaluation to TAO as a setting device to be able to write a new program.
TAOII enabled more detailed and free setting depending on a category and a course layout. It leads to the setting of the Boost/Turbo not to mention each frequency and Drive/Brakes. These are based on data from user of 1st gen.TAO
Driver can easily confirm these set points at hand, and the transmission, the setting change in AIRIA is possible by wireless, too.
In addition, It became able to display the change of various data on the running vehicle. (E.S.C./ motor temperature and battery voltage etc.)
Furthermore, you can control the various devices that planned release via a brain unit in future.
TAOII is a totally new development type effector that unifies the whole vehicle.

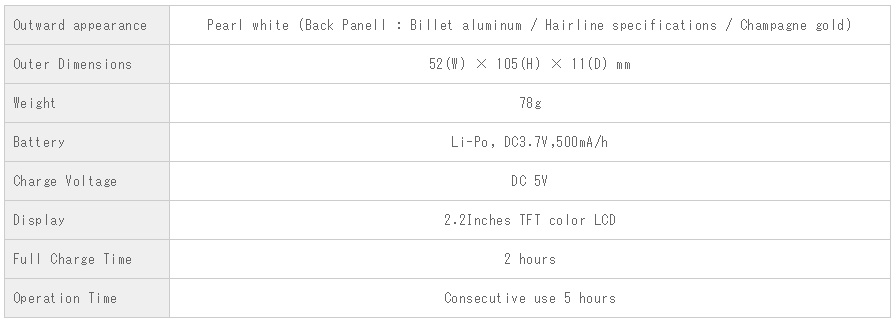

The main body back panel is champagne gold aluminum billet.
Driver can easily confirm each data by 2.2 inch color TFT display.
3．Touch scroll button is the first among the industry.
By the wheel pad, intuitive operability greatly improved.
4．Large expansion of the E.S.C. setting
It largely made various setting items expansion.
As a result, you can completely use original performance of AIRIA.
a. Frequency setting
You can completely set each frequency to greatly influence operation feeling independently. (Technology only for Acuvance)
The set point came to be largely made in expansion, the details with 1 - 2KHz step in the range of 0.5KHz or 1KHz - 32KHz.
b. Power setting
Separately from frequency setting, you can set the strength of initial speed neutral brakes and brakes.
Every 2% step can set each setting in the range of 0-50 or 100%.
c. Large expansion of the boost/turbo function
It has 11 kinds of setting with the popular boost/turbo function.
Because it went into details about a set point, not only the strong acceleration but also the slow control is possible.
d. REV limiter
It can set the upper limit of motor RPM.
5．Abundant pre-set program
It is equipped with 5 kinds of programs to pre-set according to a category.
Because you can change all program to pre-set, you can easily enjoy setting.
6．Two-way communication via Bluetooth
It can transmit the contents which you set in TAOII to AIRIA via Bluethooth. In addition, you can confirm current setting of AIRIA with a screen of TAOII by wirelessly transmitting.
When it arrived at a battery voltage and E.S.C., the motor temperature that I set beforehand, the TAOII body vibrates and will tell a driver to avoid trouble by the generous load.
8.Data logger function
Various temperature, Battery voltages, Motor RPM, Throttle work etc.
9．Graph data information
In addition to current data, a graph displays data before the last time with 1 screen at three kinds, the same time.
(Technology only for Acuvance)
Because It can easily compare the change of the running condition by this function, you can confirm various hints for an operation level or improvement of the time at hand.
10． Micro SD Card
It memorize various set points and data using bundled Micro-SD card (4GB). Therefore, you can record information approximately endlessly. Furthermore, the exchanges of the data with the friend were enabled.
11．Expansion device terminal
You can do setting each function and the logging data of the multi vehicles which carried AIRIA only in one TAOII if you use the brain unit.
As for the connection of AIRIA and Brain Unit, the connection is possible in separate with an attached L-shaped connector cable other than a docking system. You can put them on various places.
Furthermore, you can control the various expansion devices that will be released through a brain unit in future via TAOII.
※For wireless communication between XARVIS and TAO II, an Air Link Adapter (Airlink Adapter / OP-15065) is required separately.
*A temperature sensor unit sold separately is necessary for the motor temperature detection.

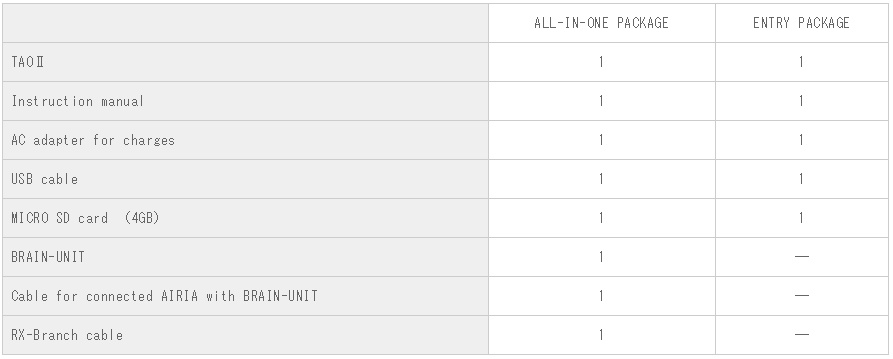

Blue Package- All in One Package
In addition to the TAOII, it is attached with a Brain Unit enabling interactive data communication via Bluetooth.
In addition, it bundle the connection wire when they separate mounting AIRIA and a Brain Unit.
By adding an optional Air Link Adapter (Airlink Adapter / OP-15065) to this package, wireless two - way communication with XARVIS is possible as well as AIRIA.
